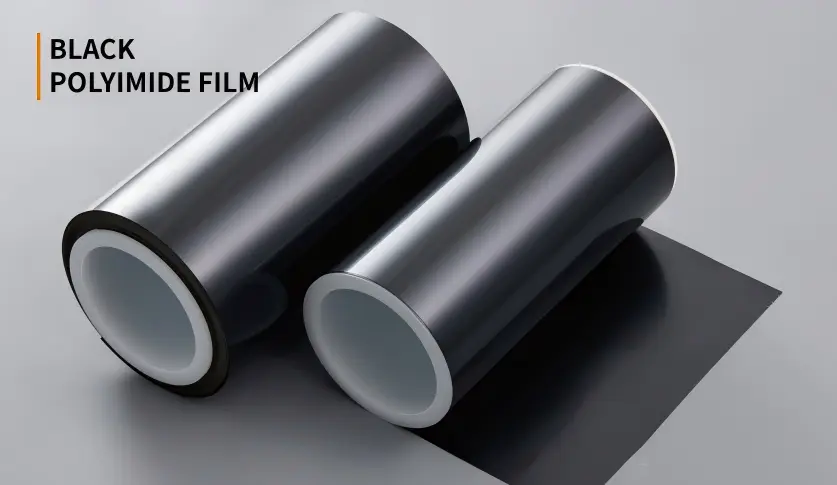

BLACK POLYIMIDE FILM

BLACK POLYIMIDE FILM

BLACK POLYIMIDE FILM

BY/BL type is a black high-temperature-resistant powder incorporated in polyamide acid, which forms a film after high-temperature imination by salivation.

Product Details

Product description

BY/BL type is a black high-temperature-resistant powder incorporated in polyamide acid, which forms a film after high-temperature imination by salivation.

Product specifications

  1. Thickness 5um-25um, width 520mm, 1040mm.
  2. The thickness is 30um-300um and the width is 520mm.
  3. 3.The thickness is 175um-300um and the width is 500mm.

Product features

The appearance color of the BL type is matte on one side and bright on the other, and the insulation strength is very high. Taking 50um as an example, the breakdown voltage can reach more than 9kv.
The BY type is available in matte black and bright black to meet customer needs for appearance.Some thicknesses (25, 30, 50um) also have a higher modulus (4.0Gpa).
Both materials have the characteristics of high temperature resistance, radiation resistance, good chemical stability, flame retardant 94V-0, halogen-free and environmentally friendly.

Application area

Black high temperature resistant tape, black high temperature resistant label, black covering film, black reinforcement or gasket material,AI glasses, humanoid robots, etc.
